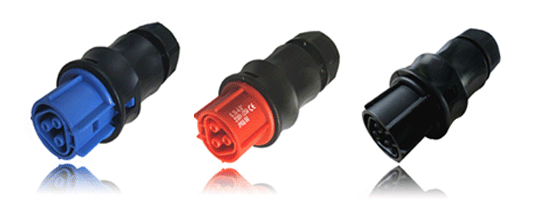

Appearance
Description
Application: photovoltaic (pv) grid inverter, aviation, industry, power supply...
Main features:
* have strong anti-aging, ultraviolet radiation resistant ability
* In conformity with the outdoor had severe conditions use requirement
* The fox cable is used to connect the riveting and tight hoop way connection;
* male female head fixed with stable self-locking mechanism, to freely; .
Single-phase power supply and a, 250 v, wire diameter 10-14 mm, three hole, screw connection
Parameter
Technical Data
|
概述 General |
额定电流Rated current |
25 A |
|
额定电压Rated voltage |
250 V | |
|
额定脉冲电压Rated impulse voltage |
4 | |
|
拉力减轻Pull relief |
Yes | |
|
污染等级Pollution degree |
3 | |
|
机械编码Mechanical coding |
是Yes | |
|
内部可封闭Interlockable |
是Yes | |
|
颜色Color of coding |
灰色 Concrete gray | |
|
连接 Connection Data |
固体连接截面面积 Connection cross section solid |
4 mm² |
|
线连接截面面积 Connection cross section stranded |
4 mm² | |
|
终端Terminations per pole |
1 | |
|
类型 Model |
类型Model |
母线Bus |
|
极数Number of poles |
3 | |
|
连接类型Connection type |
螺旋连接Screw connection | |
|
防护等级 Degree of protection (IP) |
IP66/IP68 | |
|
材料 Material |
外壳材料Housing material |
聚酰胺 Polyamide |
|
无卤素Halogen free |
是Yes | |
|
接触材料Contact material |
CuZn铜锌 | |
|
绝缘部分温度Insulation components continous temperature |
100°C | |
|
表面处理Surface finish |
镀银 Silver-plated | |
|

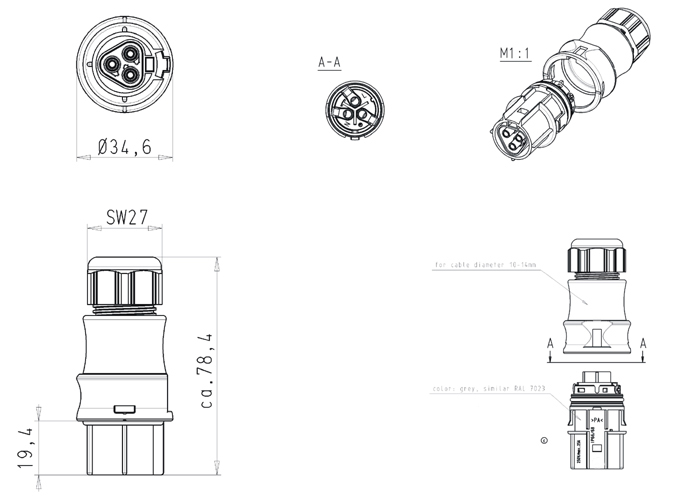

尺寸 Dimensions |
长度 Length |
80.4 mm&, lt;, /SPAN> |
|
宽度 Width |
34.6 mm | |
|
高度 Height |
34.6 mm |
